Neutral Density Filters

Purpose

These references can be used to qualify the absorbance accuracy and linearity of near-infrared spectrophotometers with a spectral bandwidth of 6.5 nm or less, over the wavelength range 800 nm - 3200 nm.

Description and Discussion

Glass filters mounted ‘stress free’ in an anodised aluminiumholder. The use of Schott NG-type glasses is well established for the validation of the absorbance scale and linearity of spectrophotometers in the near-infrared region.

The spectrum of these filters is relatively flat over most of the range of calibration, but with significant deviation above 2700 n

Calibration values (in % Transmission and Absorbance) are certified at 1100, 1700, 2210, 2500 and 2850 nm. Three filters are available, designated, R1 R3 and I1. Approximate values are:

Wavelength	1100 nm		1700 nm		2210 nm		2500 nm		2850 nm
Scale	%T	A	%T	A	%T	A	%T	A	%T	A
R1	20	0.70	40	0.40	47	0.32	49	0.31	2	1.83
R3	25	0.59	46	0.34	53	0.28	55	0.26	3	1.54
I1	33	0.48	53	0.28	59	0.23	60	0.22	6	1.25

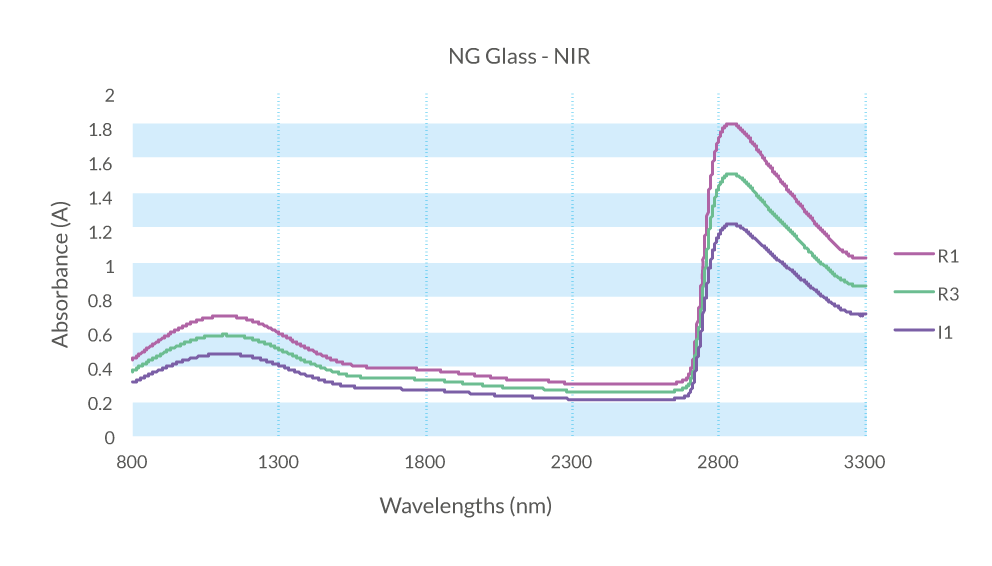

Typical spectra

Catalogue Number

1100 nm	1700 nm	2210 nm	2500 nm	2850 nm	Catalogue Number
%T	A	%T	A	%T	A	%T	A	%T	A
20	0.70	40	0.40	47	0.32	49	0.31	2	1.83	RM-R1
25	0.59	46	0.34	53	0.28	55	0.26	3	1.54	RM-R3
33	0.48	53	0.28	59	0.23	60	0.22	6	1.25	RM-I1
Set of all 3 filters as above	RM-R1R3I1
